Drills

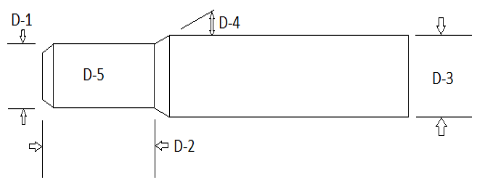

PIN & BUSHING SIZE ¼ ⁵∕₁₆ ⁷∕₁₆ ½ ⅝ ¾
D-1 .390 .452 .573 .626 .810 .920
D-2 ¹¹∕₁₆ ¾ ⅞ 1 1 ½ 1 ½
D-3 ⁹∕₁₆ ⅝ ¹³∕₁₆ ⅞ 1 ⅛ 1 ³∕₁₆
D-4 15° 15° 15° 15° 12 ½° 15°
D-5
THREAD SIZE		 ⁷∕₁₆-20 ½-20 ⅝-18 ¹¹∕₁₆-16 ⅞-14 1-12

*CALL FOR PRICING*

** Flutes not shown for clarity — Not to scale — HSS Drills **
